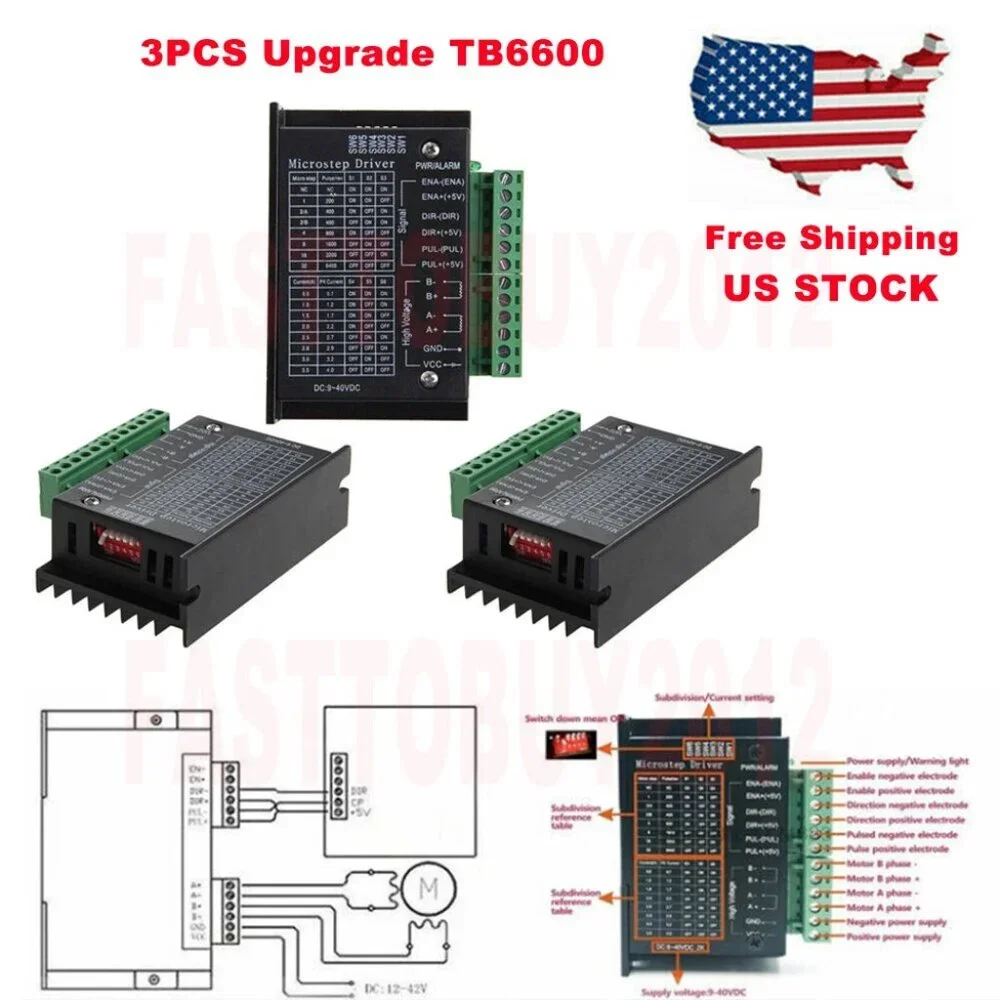

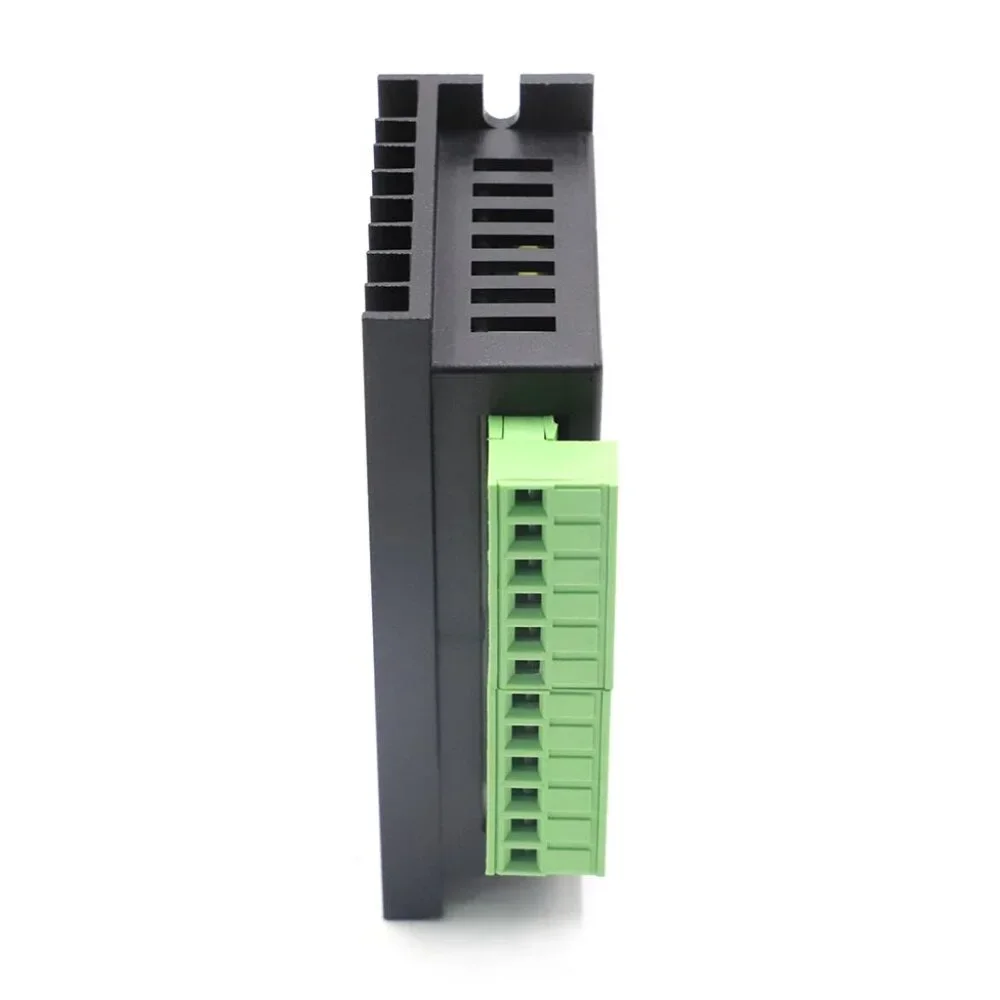

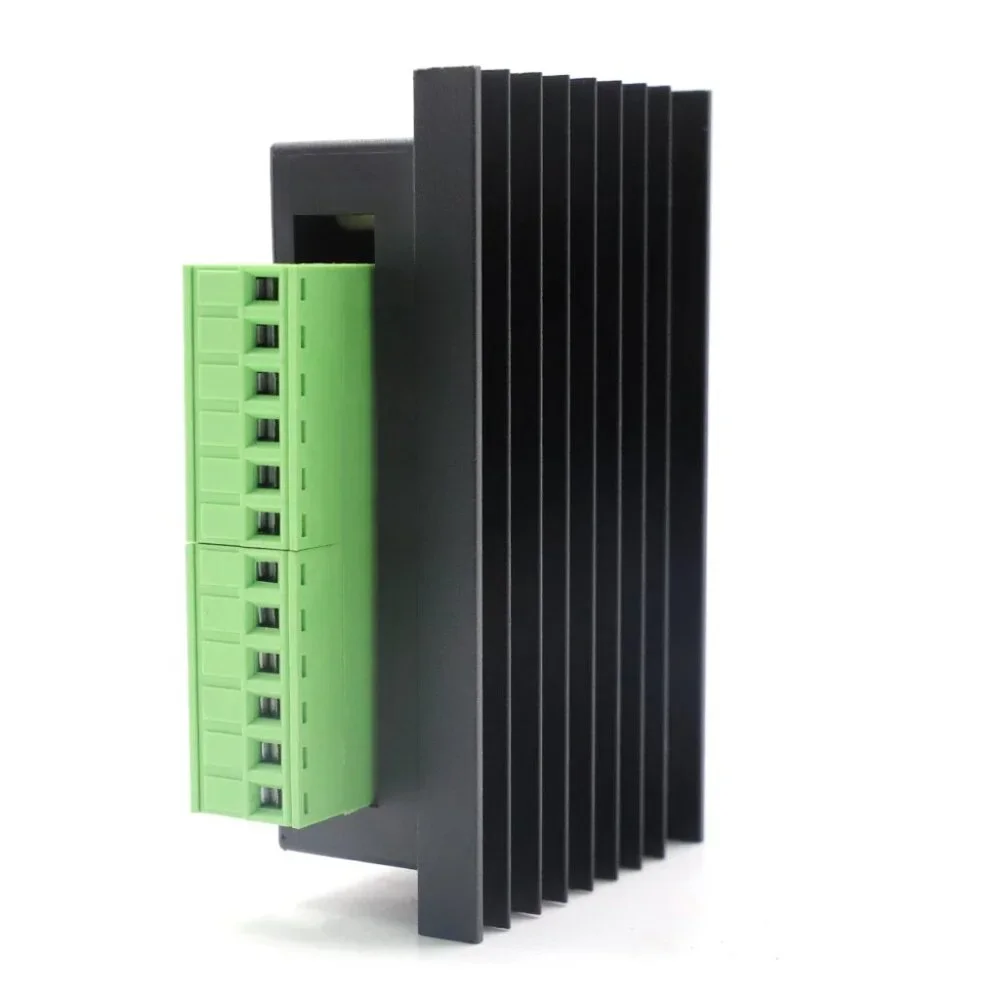

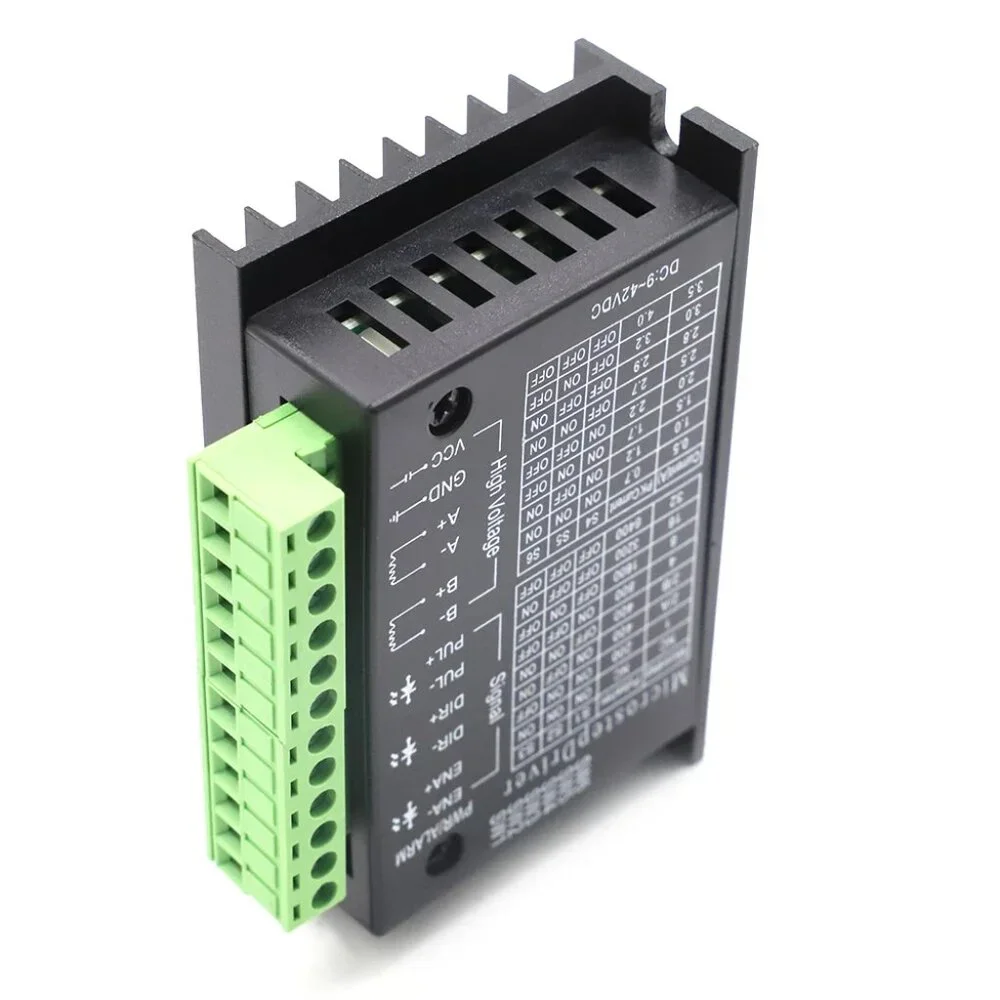

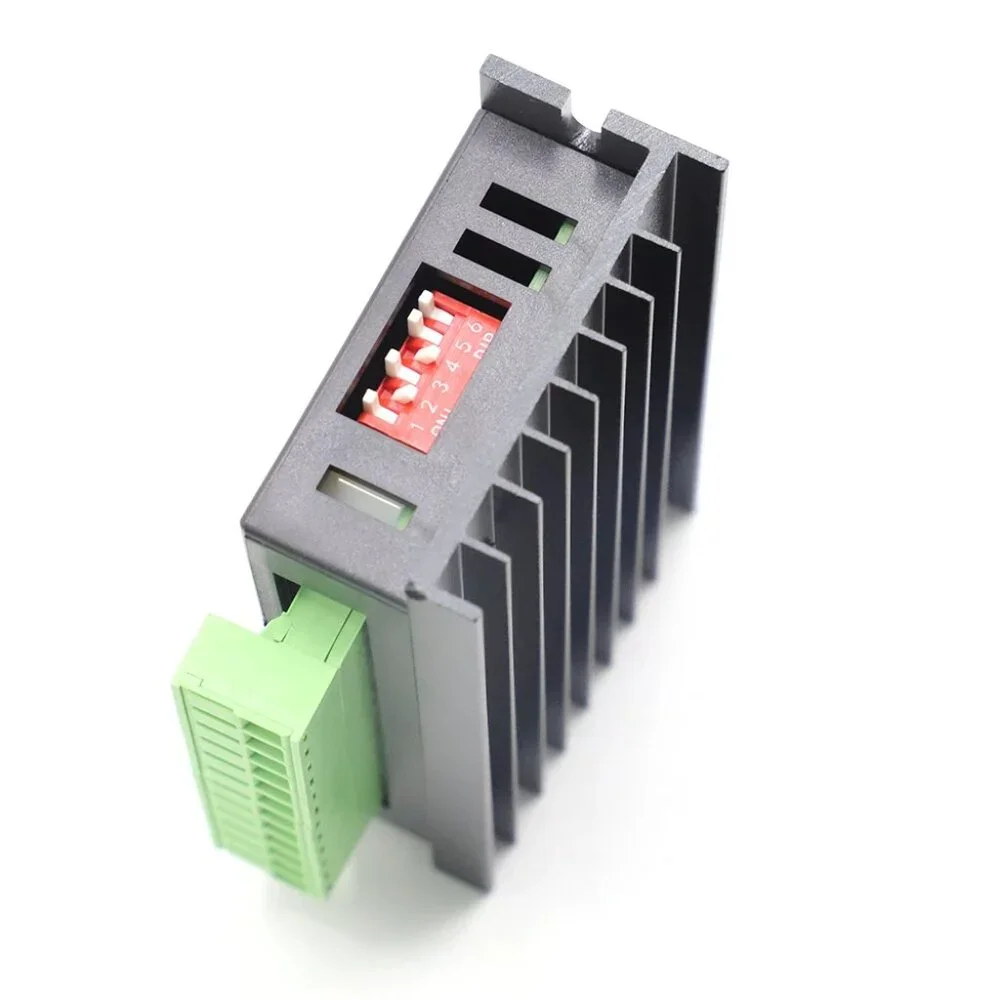

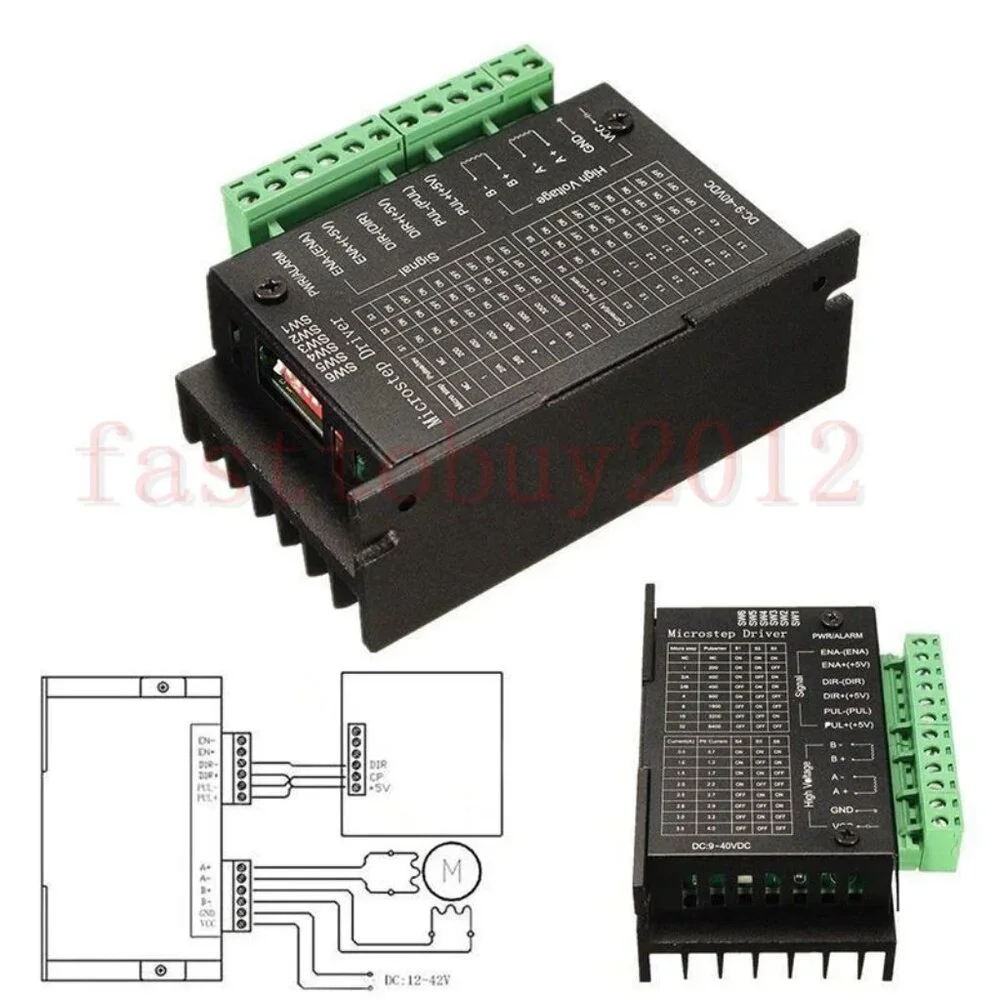

NEW 3pcs TB6600 Stepper Motor Driver Controller 32 Segments Micro-step

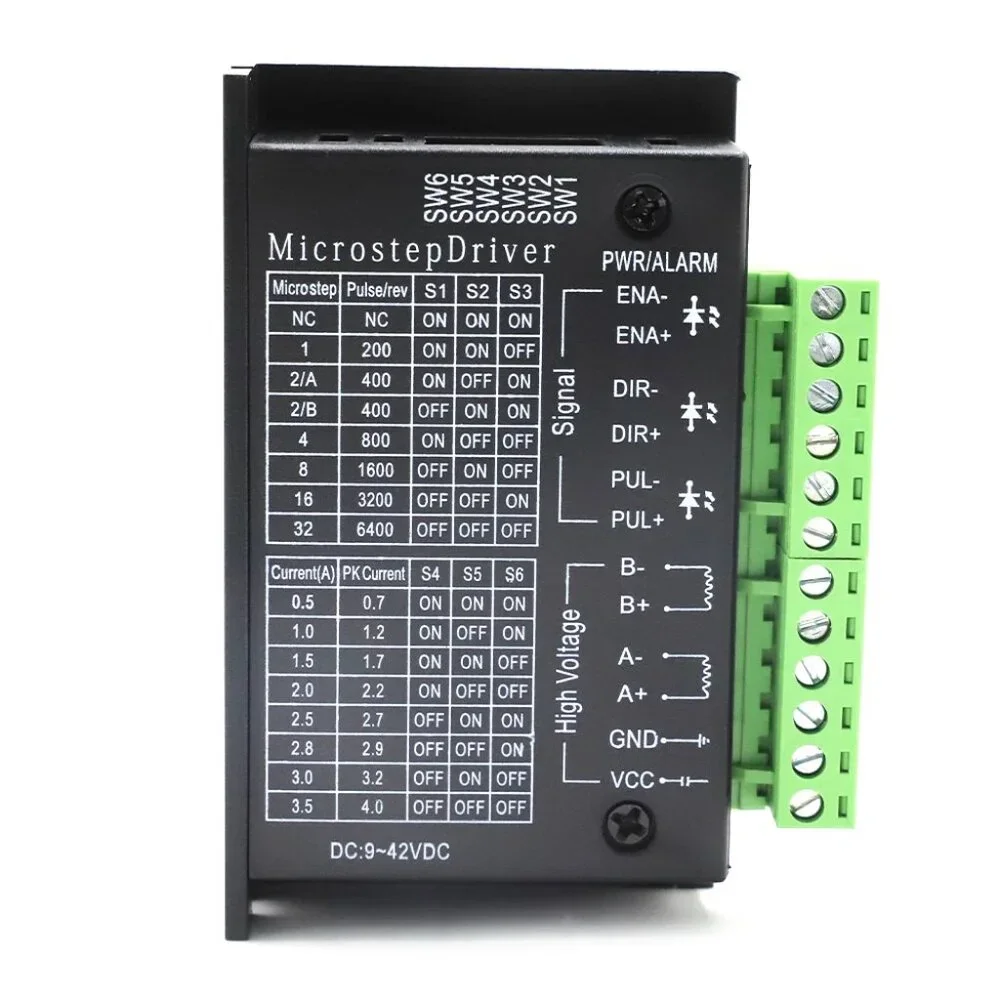

Specifications& Feature Signal input: single ended, pulse / direction Subdivision optional: 1/2/4/8/16/32 subdivision Output current: 0.5A-4.0A Input voltage: 9-42VDC (recommends 12-30V) The current is automatically halved at rest. Can drive 4, 6 and 8 Lead two-phase, four-phase stepper motor Optocoupler isolated signal input, strong anti-interference ability With overheating, overcurrent, undervoltage lockout, input voltage anti-reverse protection and other functions Small size, easy to install External signal 3.3-24V universal, no series resistor required Operating Temperature: -10 to 45 Degrees Celsius Storage temperature: -40 to 70 Degrees Celsius Chopping Frequency: less than 50KHZ  Application area The TB6600 upgrade driver is a professional two-phase hybrid stepper motor driver that can be adapted at home and abroad. Various brands, currents of 4.0A and below, four-wire, six-wire, eight-wire, two-phase hybrid with an outer diameter of 39(Nema16), 42(Nema17), 57(Nema23)mm Stepper motors are suitable for a variety of small and medium-sized automation equipment and instruments, such as: engraving machines, marking machines, cutting machines, Laser phototypesetting, plotter, CNC machine tool, pick and place device, etc. In the user expects low cost, high current operation  I offer bundle discounts and welcome offers from all closet visitors :) PALBROCK
